The modular air handling solution for your project

Modular air handling unit

WOLF KG Top

Long-life ventilation units with a modular design that allows flexible spatial configuration, combining the advantages of industrial production with the option of individual configuration – bringing maximal speed in the planning, producing and installation process.

For air volumes up to 40,000 m³/h

wolf

Highlights at a glance

The modular design of the KG Top series combines the efficiency of serial production with the flexibility of tailored configuration.
With 23 unit sizes available, your ideal system can be assembled in no time. Despite this unmatched configurability within the industry, WOLF guarantees short lead and delivery times. Whether for office buildings, hotels, industrial facilities, commercial properties or healthcare settings – KG Top delivers maximum efficiency and meets the highest demands. Every single module reflects over 60 years of German engineering expertise.

wolf

Heat recovery

  • Rotary heat exchanger esp. for ventilating office buildings, as in winter part of the humidity from the outgoing air is recovered and fed back
  • Two choices of Plate heat exchangers for separate airflows:compact Counterflow heat exchanger - heat transfer on four sides, supply and exhaust air flows are directed crosswise and simultaneously. Cross-flow heat exchanger for high volume ventilation systems – heat transfer on two sides, as the supply and exhaust air flows are directed crosswise and tightly with low pressure loss
  • HKVS system for 100% separation of supply and exhaust airflows
More Info
wolf

Low energy consumption

  • State of the art ventilation, infinitely variable, energy-efficient IE4 EC fans from the leading European manufacturers
  • Fanwall to save floor space and for the purpose of redundancy
  • Integrable heat pump technology for decentralised and highly efficient heating and cooling supply (choice of integrated cooling unit, integrated heat pump or integrated reversible heat pump for both purposes
  • External heat pump technology for decentralised heating and cooling supply
  • Separate or combined heating and cooling coils when using externally generated heat or cold



More Info
wolf

Hygiene

  • Construction in accordance with the hygiene common guidelines DIN 1946 – Part 4 and VDI 6022 for operation in clean rooms and operating theatres (class 1A)
  • Filters of all classes and sizes (Filter stages up to ISO ePM1 0% (F9)
  • Good accessibility for cleaning and maintenance purposes (Flip&Clean silencer, quick-clamping filter systems) and smooth and flat floors and surfaces made of stainless steel
  • Patented labyrinth sealing system Super Seal for 98% tightness
  • Hygroflow air humidification according to VDI 6022
More info
wolf

Control

  • Plug & play with full wiring and optimally positioned sensors for units with different requirements
  • Individual and parameterised for the most economical operation
  • Modbus or BACnet interface for easy connection with building management systems
  • Can always be retroactively and customzied expanded
  • Installation in external control cabinet or alternatively integrated in the unit



More info
KG Top - Grundrahmen Kranbefestigung

Housing

  • Made for the most stringent static, thermal and hygienic requirements
  • Thermally and acoustically decoupled, 60 mm thick aluminium profile
  • Meets L1; D1; T2; TB2 and- non-flammable building material class according to DIN 4102: A1 (tested by TÜV Süd according to DIN EN 1886)
  • Easy Lifting for transport by crane or helicopter
  • Powder-coated inside and out in any RAL colour, optionally with saltwater-resistant C5-M paint
More Info
wolf

ATEX

  • All Housing, add-on parts and built-in parts electrically are electrically conductive and designed with potential equalisation
  • Air filter with ATEX certification with conductive filter medium in conductive filter mounting frame
  • Fans with ATEX certification according to classification
  • WOLF checklist for the specialist planner, operator and system manufacturer to easily classify the AHU in accordance with the directives
More info
wolf

Request for more information

Are you interested in our products and would you like advice specifically for your situation?

Contact us
  • wolf

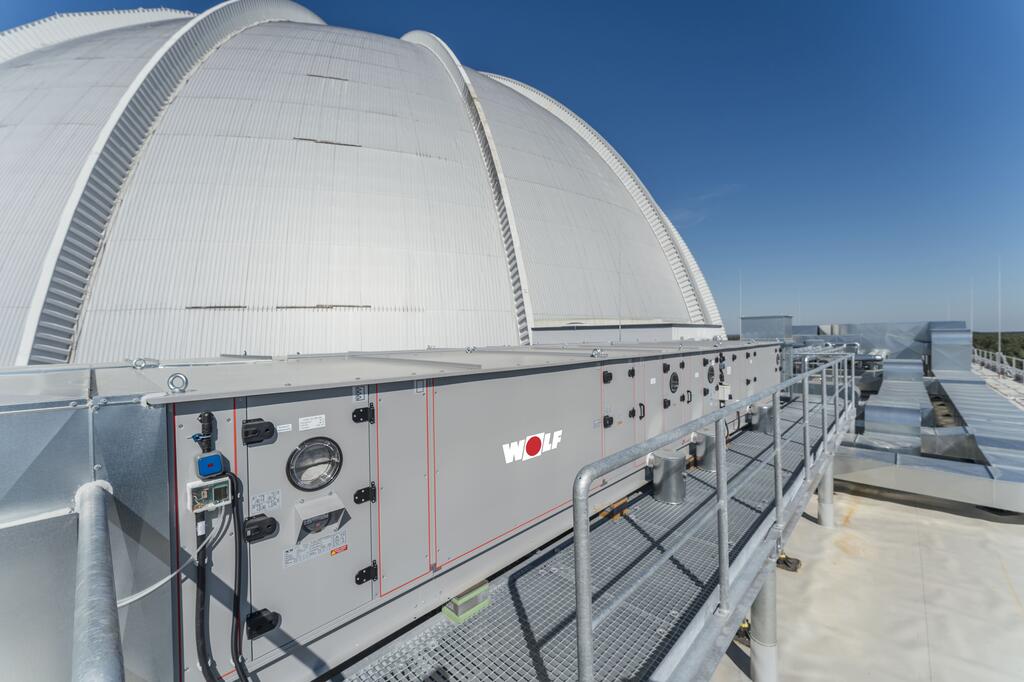

Perfect indoor climate even on tropical nights

Tropical Islands

In the OHANA Lodge Hotel, seven modern WOLF KG Top units provide fresh air as required for the rooms, kitchen, restaurant, entertainment and technical areas. The total air capacity installed by WOLF in the ‘OHANA’ is 62,000 m3/h. The highly efficient units achieve heat recovery rates of over 80%. The air velocity of the supply air introduced into the occupied zone as required is generally below 0.1 m/s. The compact modular design simplifies logistics on the construction site.

Request for personalised support

Customised to your needs

The KG Top is optimized regarding its CO2 Footprint and we can demonstrate this with our certified Air Handling Calulator. At the same time the KG Top is available with minimum delivery times and the option of maximum speed on the construction site.

Green Steel
For certified green buildings

Choose our green steel option with a reliable proof of the CO₂e, when you want an outstanding green air handling solution.

Learn more
Green Steel
For certified green buildings

Choose our green steel option with a reliable proof of the CO₂e, when you want an outstanding green air handling solution.

Learn more
CO2 Footprint
Entire product cycle

Our TÜV Süd certified calculator calculates the CO2-Footprint from production to the recycling process over a 25-year service life.

Learn more
CO2 Footprint
Entire product cycle

Our TÜV Süd certified calculator calculates the CO2-Footprint from production to the recycling process over a 25-year service life.

Learn more
Delivery time
Always the fastest

Thanks to direct data transmission from our calculator to the WOLF production site in Mainburg, we guarantee the shortest delivery times.

Learn more
Delivery time
Always the fastest

Thanks to direct data transmission from our calculator to the WOLF production site in Mainburg, we guarantee the shortest delivery times.

Learn more
Deliver in one piece
Save your time

Optional delivery fully assembled on a base frame with individually configured pre-wiring for faster installation.

Learn more
Deliver in one piece
Save your time

Optional delivery fully assembled on a base frame with individually configured pre-wiring for faster installation.

Learn more
Green Steel
For certified green buildings

Choose our green steel option with a reliable proof of the CO₂e, when you want an outstanding green air handling solution.

Learn more
CO2 Footprint
Entire product cycle

Our TÜV Süd certified calculator calculates the CO2-Footprint from production to the recycling process over a 25-year service life.

Learn more
Delivery time
Always the fastest

Thanks to direct data transmission from our calculator to the WOLF production site in Mainburg, we guarantee the shortest delivery times.

Learn more
Deliver in one piece
Save your time

Optional delivery fully assembled on a base frame with individually configured pre-wiring for faster installation.

Learn more

Everything else you need to know:

    • On duty for your customers 7 days a week:
      Our trained service technicians and dedicated office support team are here for you—seven days a week. Quick responses, professional solutions, and satisfied customers guaranteed.

      Learn more

    • Carry out maintenance now:
      Personalized consulting, clear answers, and quick quotations—our experienced sales team is always ready to support your projects. Professional, reliable, and right on time.

      Learn more

    • Expertise through training:
      Our WOLF Campus offers extensive training and continuing education programs tailored to your needs. Enhance your skills, stay ahead with the latest knowledge, and secure your competitive advantage.

      Learn now

    • The right air handling unit in just a few clicks.

      •  Quickly design your compact or modular unit in just a few clicks
      •  Compatible with tablet for use on site
      •  Output of detailed calculations and documents: 3D view, drawings in many formats, data sheets, label classes, guide prices
      •  Available directly from the MyWolf portal for our specialist partners

      Test the configurator in the myWOLF portal now

      No myWOLF access yet?

      Learn more

    • Building Information Modelling, or BIM for short, is revolutionising the planning world - WOLF is now BIM-ready!

      All the advantages of the BIM Browser at a glance:

      • Plan your device configuration quickly and easily using the 2-minute configurator
      • Your system can be calculated and designed from design to installation
      • Visualise your system as a 2D or 3D model with all the required connections
      • All WOLF heating products are available as Revit-compatible files

      More information about the BIM Browser

      Learn more

    • Knowledge and inspiration at your fingertips:
      Discover the latest industry insights, project references, technical articles, and valuable updates. Sll in one place, always up-to-date.

      Learn more

    • Difficult site conditions for planners and air conditioning installers? WOLF has something against this: the Easy Lifting System. Because it makes transport to or into a building much easier and the installation of the functional units faster and more precise. So simple that even our largest air conditioning components, such as rotary or plate heat exchangers, can be transported smoothly into any building or onto the roof.

      The Easy Lifting system also makes a major contribution to the hygiene of WOLF air handling units. Thanks to the sophisticated connection and transport technology, installation-related leaks from heat exchangers or unit cubes can be virtually ruled out.

      Learn more

    • An interlocking of software and production that is unique in the industry allows a high degree of flexibility in the configuration of the devices and, at the same time, efficient production with particularly short delivery times.
