Oil hybrid heating

Classic combustion plus renewable energy

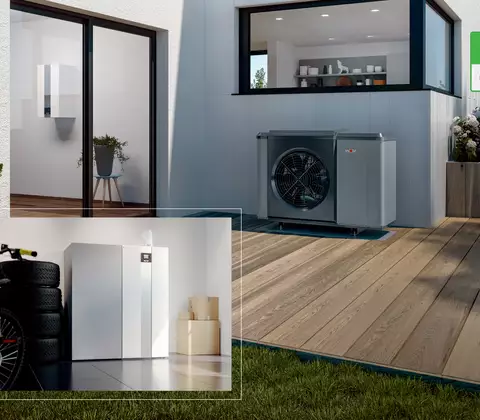

Oil hybrid heating is the perfect solution for modernising heating systems. It provides the benefits of a reliable oil heating system while lowering heating costs and heating your home in a more eco-friendly manner by using renewable energy.

Two complementary heat generators

  • Combining oil and solar

    Combining an oil condensing boiler with environmentally friendly solar energy reduces your heating oil requirements by 20 to 50%. It is no surprise that this combination is the most popular oil hybrid heating system version.

  • Combining oil and heat pumps

    Combining an oil heating system with a heat pump means your home will be heated exclusively using climate-friendly environmental heat as often as possible. The oil boiler only switches on when the weather is particularly cold or when you need a lot of hot water.

Benefits of WOLF oil hybrid heating systems

Smartset advantages

Precise coordination

Teamwork

WOLF oil hybrid heating combinations are complete systems of precisely coordinated components. The condensing boiler, renewable energy source and thermal storage cylinder work together smoothly as a team. Read more

Perfect control

An intelligent control system in the oil hybrid heating system ensures that every component performs its task to perfection. The shared control system and programming unit make monitoring and operating the system a breeze. It can even be controlled from your smartphone using the WOLF Smartset app. Read more

Save costs

High efficiency

Save heating oil

The precise coordination of WOLF oil hybrid systems exploits all the strengths of the various components to achieve optimum efficiency. The consequence: lower oil consumption and lower heating costs. Read more

Combined for greater reliability

Adding a second heat generator to the oil condensing boiler extends the life of the boiler. Furthermore: you benefit from additional operational reliability as one of the two heat generators will continue to operate if the other malfunctions. Read more

solar thermal

Use renewable energies

Climate-neutral and environmentally friendly

Renewable energies heat your home in a climate-neutral and environmentally friendly way. The higher the proportion, the better.

Independent of oil prices

Renewable energies reduce oil consumption. You can look forward to more stable heating costs and are less dependent on imported fuels.

WOLF Heiztechnik - Request advice

Do you have any questions?

It can be complex and time-consuming to find the right solution for your home. We can help you to understand everything that is really relevant to your project in only a few minutes.

Start your consultation

The components of an oil hybrid heating system

WOLF oil condensing boilers are the perfect complement to this renewable component thanks to their high efficiency and the perfectly coordinated controls.

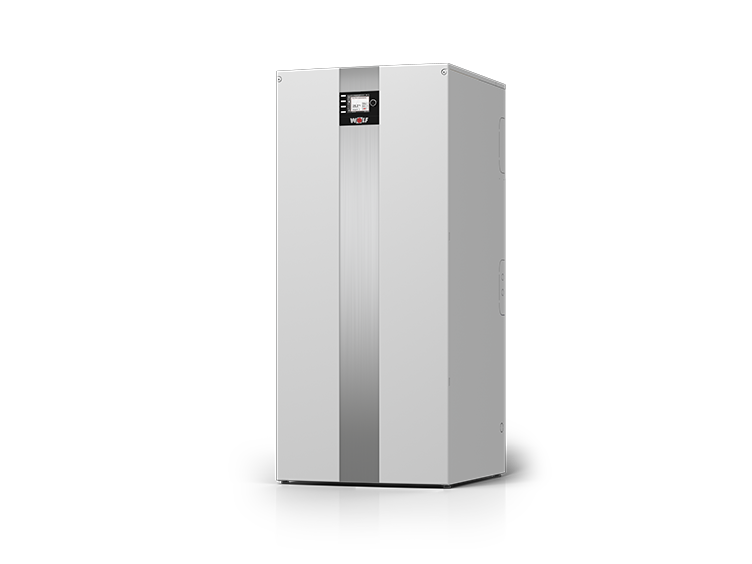

  • COB-2

    This WOLF model works extremely quietly due to its integrated silencer and can adjust its output in two stages.


    Basic information

    Heating system energy efficiency class A

    Dimensions (HxWxD) 1290mm x 566mm x 605mm

  • TOB

    The floorstanding condensing boiler can modulate its output continuously, making it even more energy-efficient and lowering costs.

    Basic information

    Central heating energy efficiency class A

    Dimensions (WxHxD) 566mm x 2190mm x 605mm

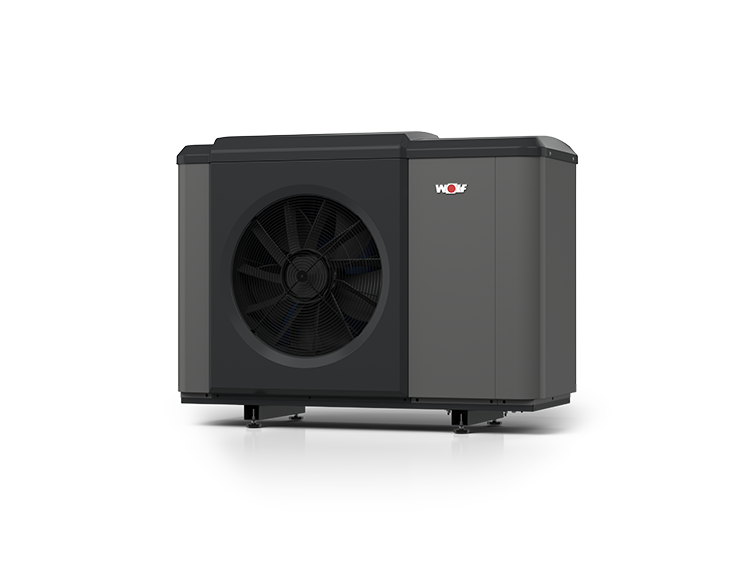

  • Monoblock variant

    The unparalleled design of the CHA Monoblock will blend in perfectly with the exterior of your home and win you round with incredibly low operating costs.

    Basic information

    Energy efficiency class, central heating, low temperature A+++

    Energy efficiency class, central heating, medium temperature A++

    Outdoor unit dimensions (WxHxD) 1286mm x 79mm x 562mm

    Indoor unit dimensions (WxHxD) 440mm x 790mm x 340mm

  • Split variant

    The BWL-1S(B) is divided into an indoor and an outdoor unit. It is low in cost but high in output.

    Basic information

    Energy efficiency class, central heating, low temperature A++

    Indoor unit dimensions (WxHxD) 440mm x 790mm x 340mm

  • Flat-plate collectors

    TopSon F3-1 collectors are excellent value for money and last for many years thanks to their robust pan construction.

    Basic information

    Gross surface area 2.3 m2

  • Tube collectors

    If you choose the WOLF CRK-12 tube collector, you will benefit from very high efficiency levels all year round.

    Basic information

    Gross surface area 2.29 m2

Technical details

  • COB-2

    COB-2-15
    COB-2-20
    COB-2-29
    COB-2-40
    Central heating energy efficiency class
    A
    A
    A
    A
    Min./max. rated heating output at 50/30°C
    kW
    9.6 / 15.4
    14.1 / 20.4
    19.9 / 30.4
    28.7 / 40.4
    Seasonal space heating energy efficiency ηS
    %
    92
    92
    93
    93
    Width
    mm
    566
    566
    566
    566
    Height
    mm
    1290
    1290
    1290
    1290
    Depth
    mm
    605
    605
    605
    605
    Interior sound power level
    dB(A)
    53
    54
    59
    59

    COB-2

    • COB-2-15

    • COB-2-20

    • COB-2-29

    • COB-2-40

      Central heating energy efficiency class
      A
      A
      A
      A
      Min./max. rated heating output at 50/30°C (kW)
      9.6 / 15.4
      14.1 / 20.4
      19.9 / 30.4
      28.7 / 40.4
      Seasonal space heating energy efficiency ηS (%)
      92
      92
      93
      93
      Width (mm)
      566
      566
      566
      566
      Height (mm)
      1290
      1290
      1290
      1290
      Depth (mm)
      605
      605
      605
      605
      Interior sound power level (dB(A))
      53
      54
      59
      59

    • TOB

      TOB-18
      Central heating energy efficiency class
      A
      Rated heating output at 50/30°C min./max.
      kW
      6.6 / 18.6
      Seasonal space heating energy efficiency ηS
      %
      93
      Width
      mm
      566
      Height
      mm
      2190
      Depth
      mm
      605

      TOB

      • TOB-18

        Central heating energy efficiency class
        A
        Rated heating output at 50/30°C min./max. (kW)
        6.6 / 18.6
        Seasonal space heating energy efficiency ηS (%)
        93
        Width (mm)
        566
        Height (mm)
        2190
        Depth (mm)
        605

      • Monoblock variant

        Type
        CHA-07
        CHA-10
        Output range at A-7/W35
        kW
        1.6-6.8
        2.2-9.8
        A7/W35 rated output / COP according to EN14511
        kW / -
        4.5 / 5.47
        4.1 / 5.72
        A2/W35 rated output / COP to EN 14511
        kW / -
        5.15 / 4.54
        5.75 / 4.65
        A-7/W35 max. output / COP according to EN14511
        kW / -
        5.88 / 2.73
        7.97 / 2.88
        Max. flow
        °C
        70
        70
        Max. nighttime sound pressure (installed outdoors at a distance of 3 m)
        dB(A)
        32
        34
        Max. daytime / max. nighttime sound power level
        dB(A)
        58 / 49
        60 / 51
        Sound power level ErP
        dB(A)
        52
        53
        Refrigerant type / charge weight / GWP
        - / kg / -
        R290 / 3.1 / 3
        R290 / 3.4 / 3
        Energy efficiency class, central heating, low temperature
        -
        A++/A+++
        A++/A+++
        Energy efficiency class, central heating, average temperature
        -
        A++
        A++
        Dimensions of outdoor unit
        mm
        1286 x 586 x 902
        1286 x 586 x 902
        Dimensions of indoor unit
        mm
        440 x 340 x 790
        440 x 340 x 790
        Weight outdoor / indoor unit
        kg
        152 / 27
        162 / 27
        KEYMARK certification (ISO type 5)
        Yes
        Yes

        Monoblock variant

        • CHA-07

        • CHA-10

          Output range at A-7/W35 (kW)
          1.6-6.8
          2.2-9.8
          A7/W35 rated output / COP according to EN14511 (kW / -)
          4.5 / 5.47
          4.1 / 5.72
          A2/W35 rated output / COP to EN 14511 (kW / -)
          5.15 / 4.54
          5.75 / 4.65
          A-7/W35 max. output / COP according to EN14511 (kW / -)
          5.88 / 2.73
          7.97 / 2.88
          Max. flow (°C)
          70
          70
          Max. nighttime sound pressure (installed outdoors at a distance of 3 m) (dB(A))
          32
          34
          Max. daytime / max. nighttime sound power level (dB(A))
          58 / 49
          60 / 51
          Sound power level ErP (dB(A))
          52
          53
          Refrigerant type / charge weight / GWP (- / kg / -)
          R290 / 3.1 / 3
          R290 / 3.4 / 3
          Energy efficiency class, central heating, low temperature (-)
          A++/A+++
          A++/A+++
          Energy efficiency class, central heating, average temperature (-)
          A++
          A++
          Dimensions of outdoor unit (mm)
          1286 x 586 x 902
          1286 x 586 x 902
          Dimensions of indoor unit (mm)
          440 x 340 x 790
          440 x 340 x 790
          Weight outdoor / indoor unit (kg)
          152 / 27
          162 / 27
          KEYMARK certification (ISO type 5)
          Yes
          Yes

        • Split variant

          BWL-1S(B) 05/230V
          BWL-1S(B) 07/230V
          BWL-1S(B) 10/230V
          BWL-1S(B) 14/230V
          BWL-1S(B) 10/400V
          BWL-1S(B) 14/400V
          BWL-1S(B) 16/400V
          Energy efficiency class, central heating, low temperature
          A+++
          A+++
          A+++
          A+++
          A+++
          A+++
          A+++
          Energy efficiency class, central heating, medium temperature
          A+
          A++
          A+
          A+
          A++
          A++
          A++
          Dimensions
          Width x height x depth of outdoor unit (incl. legs and front doors)
          mm
          964 x 862 x 363
          964 x 862 x 363
          964 x 1261 x 363
          964 x 1261 x 363
          964 x 1261 x 363
          964 x 1261 x 363
          964 x 1261 x 363
          Width x height x depth of indoor unit (including legs and front doors)
          mm
          440 x 790 x 340
          440 x 790 x 340
          440 x 790 x 340
          440 x 790 x 340
          440 x 790 x 340
          440 x 790 x 340
          440 x 790 x 340
          Weight of outdoor/indoor unit
          kg
          66 / 31
          66 / 31
          110 / 30
          110 / 32
          110 / 35
          110 / 37
          110 / 37

          Split variant

          • BWL-1S(B) 05/230V

          • BWL-1S(B) 07/230V

          • BWL-1S(B) 10/230V

          • BWL-1S(B) 14/230V

          • BWL-1S(B) 10/400V

          • BWL-1S(B) 14/400V

          • BWL-1S(B) 16/400V

            Energy efficiency class, central heating, low temperature
            A+++
            A+++
            A+++
            A+++
            A+++
            A+++
            A+++
            Energy efficiency class, central heating, medium temperature
            A+
            A++
            A+
            A+
            A++
            A++
            A++
            Dimensions
            Width x height x depth of outdoor unit (incl. legs and front doors) (mm)
            964 x 862 x 363
            964 x 862 x 363
            964 x 1261 x 363
            964 x 1261 x 363
            964 x 1261 x 363
            964 x 1261 x 363
            964 x 1261 x 363
            Width x height x depth of indoor unit (including legs and front doors) (mm)
            440 x 790 x 340
            440 x 790 x 340
            440 x 790 x 340
            440 x 790 x 340
            440 x 790 x 340
            440 x 790 x 340
            440 x 790 x 340
            Weight of outdoor/indoor unit (kg)
            66 / 31
            66 / 31
            110 / 30
            110 / 32
            110 / 35
            110 / 37
            110 / 37

          • Flat-plate collectors

            F3-1
            F3-1Q
            CFK-1
            Width
            mm
            1099
            2099
            1099
            Height
            mm
            2099
            1099
            2099
            Depth
            mm
            110
            110
            110
            Gross surface area
            m2
            2.3
            2.3
            2.3

            Flat-plate collectors

            • F3-1

            • F3-1Q

            • CFK-1

              Width (mm)
              1099
              2099
              1099
              Height (mm)
              2099
              1099
              2099
              Depth (mm)
              110
              110
              110
              Gross surface area (m2)
              2.3
              2.3
              2.3

            • Tube collector

              CRK-12
              Effective surface area of the collector
              m2
              2
              Width
              mm
              1390
              Height
              mm
              1640
              Depth
              mm
              100
              Gross surface area
              m2
              2.29

              Tube collector

              • CRK-12

                Effective surface area of the collector (m2)
                2
                Width (mm)
                1390
                Height (mm)
                1640
                Depth (mm)
                100
                Gross surface area (m2)
                2.29
