KG Flex Pool

The modular or individually planned ventilation solution for your pool project

All-in-one air handling system for indoor and outdoor pool applications.

KG Flex Pool

Robust and multifunctional swimming pool ventilation solution for indoor and outdoor use

Fully customised pool ventilation units in terms of equipment level, air volumes, design and dimensions, which operate with maximum efficiency for optimum comfort.

► For air volumes from 2.000 to 35.000 m³/h

The optimal solution for every space or performance requirement, reliably dehumidifying the air in your indoor swimming pool in line with your needs and efficiently – in all weather conditions. All versions for indoor and outdoor use meet the most stringent thermal and hygiene requirements.

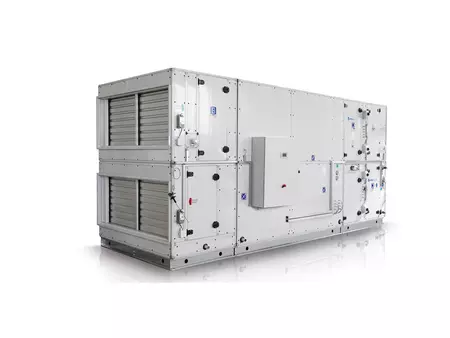

WOLF KG Flex Pool

Highlights at a glance

In addition to 18 standard sizes, KG Flex Pool units can also be built to meet specific project requirements for renovations, reconstructions and other particularly demanding projects: this applies equally to individual unit dimensions for optimum use of space and to performance and functionality thanks to a wide range of options.

The durable KG Flex Pool offers maximum efficiency while meeting the highest standards of comfort. KG Flex Pool devices are characterised by a high level of corrosion protection. Each device is the result of over 50 years of project experience. Thousands of individually designed KG Flex Pools have now been installed across Europe.

wolf

Hygiene

  • All versions for indoor and outdoor use are designed in accordance with hygiene guidelines VDI 6022 and VDI 3803 and thus meet the most stringent hygiene requirements.
  • Precise dehumidification prevents the formation of condensation and thus eliminates the cause of mould growth and corrosion.
  • Easy access for cleaning and maintenance, smooth and level floors and surfaces made of stainless steel, drip tray made of coated stainless steel.
  • Bag filters, optional panel filters
wolf

Efficiency

  • State-of-the-art ventilation, continuously adjustable, energy-efficient IE5 EC fans from leading European manufacturers
  • Integrated heat pump with optional process reversal for cooling and dehumidifying or for heating
  • Optional: A pool water condenser (with a heat pump) offers the possibility of transferring exhaust air heat to the pool water when the demand on the air side has already been met
  • Separate or combined heating and cooling coils for externally generated heat or cold
  • Good thermal properties of the housing minimise heat loss.
wolf

Heat recovery

  • Fully integrated heat pump for transferring additional heat from the exhaust air to the supply air and control as a complete system increases energy efficiency. The refrigeration circuit is combined in one component. Plug & play without a refrigeration licence.
  • High heat recovery rates in the recuperator without moisture transfer. Highly efficient epoxy resin-coated aluminium plate heat exchanger with very high heat recovery. Not only does it reduce operating costs, it is also highly recyclable.
wolf

Durability

  • Certified corrosion-resistant components
  • Comprehensive corrosion protection inside and outside (stainless steel and, for example, powder-coated or plastic-coated surfaces) in the housing construction, the built-in and attached components, the frames and the fastening elements guarantees a long service life.
  • Easily accessible and easy-to-clean smooth surfaces are not only very hygienic, but also minimise the risk of corrosion caused by corrosive components present in the form of aerosols in the air of indoor swimming pools.
  • Thermally decoupled 50 mm thick aluminium profile (KG Flex Pool), for larger air volumes 60 mm aluminium profile (= KG Flex Pool max – Easy Lifting possible here)
wolf

Flexibility

  • Lower energy costs thanks to intelligent control for operation tailored precisely to demand.
  • Graphical web interfaces such as MODBUS, BACNet, BACNet/IP, LON, IC Cloud Access System for building management systems for optimal control, troubleshooting and monitoring of the device.
  • Plug & play thanks to complete cabling and optimally positioned sensors
  • Access via a web browser, allowing remote operation modes to be changed, data points to be recorded or detailed settings to be modified.

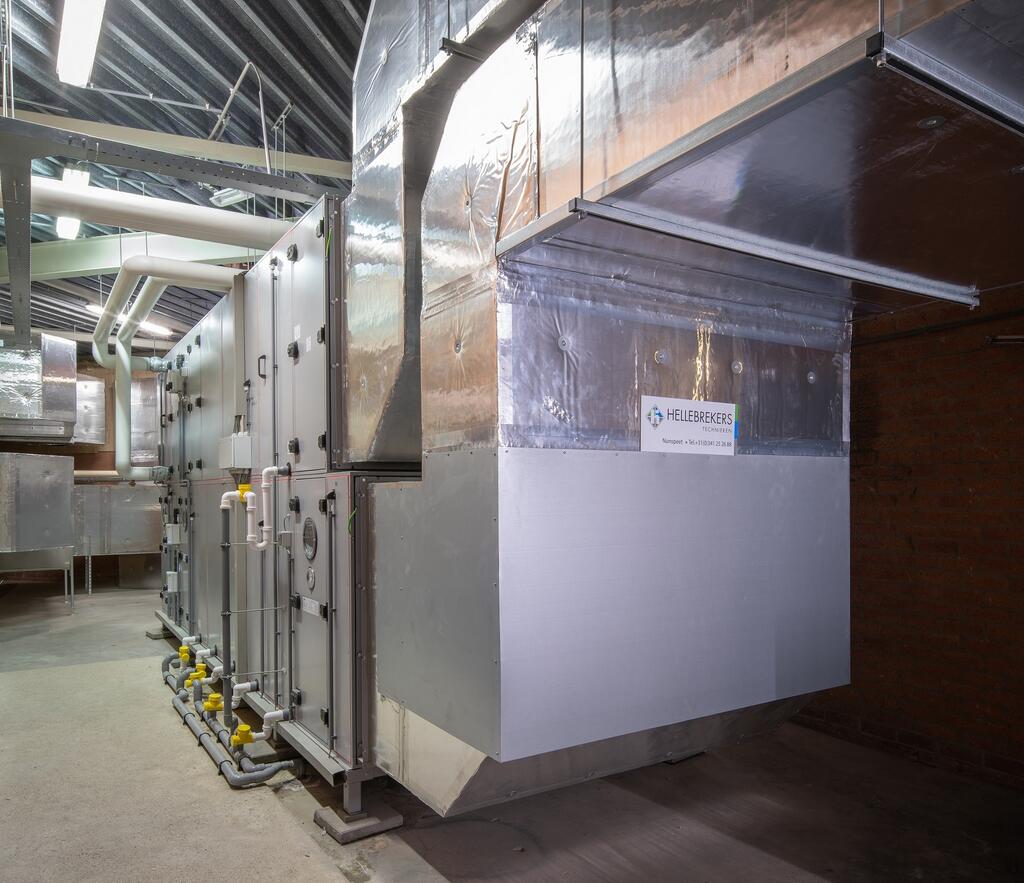

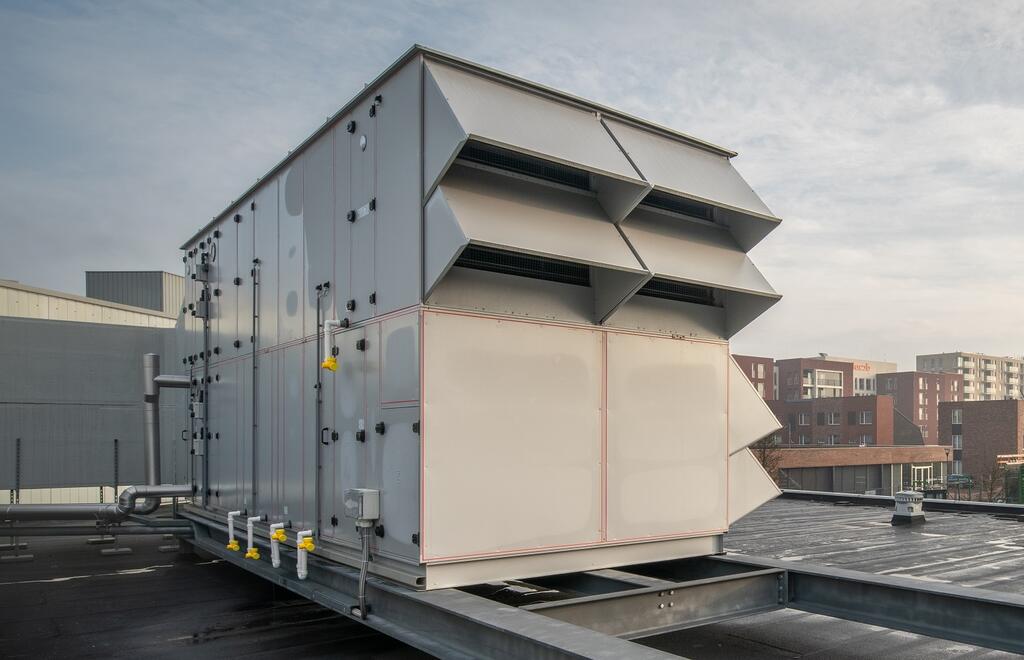

  • Installation of the device indoors or outdoors
  • Dimensions and functionality (components) can be customised
wolf
