Bypass register
Saving energy with good sence
A bypass register is integrated in all WOLF compact units with plate exchanger The bypass provides great energy savings.

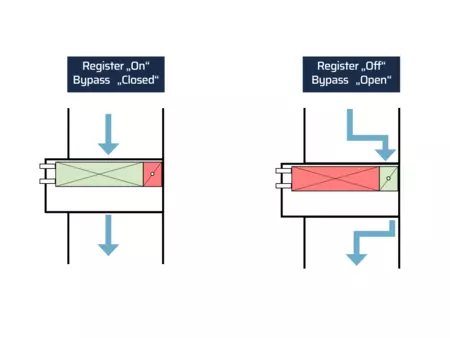

- Outside the coil operating times, the air flows via the open bypass
- Unchanged pressure loss during operation by increasing the cross-section of the device
Advantages at a glance
Energy saving Electrical drive energy fan
The space required for the bypass damper is created by the device protrusion. The ribbed register area remains the same, compared to the original situation
Very good accessibility via removable panel on the operating side and flap pull-out without screws
For optimum function, attention must be paid to the inflow and outflow

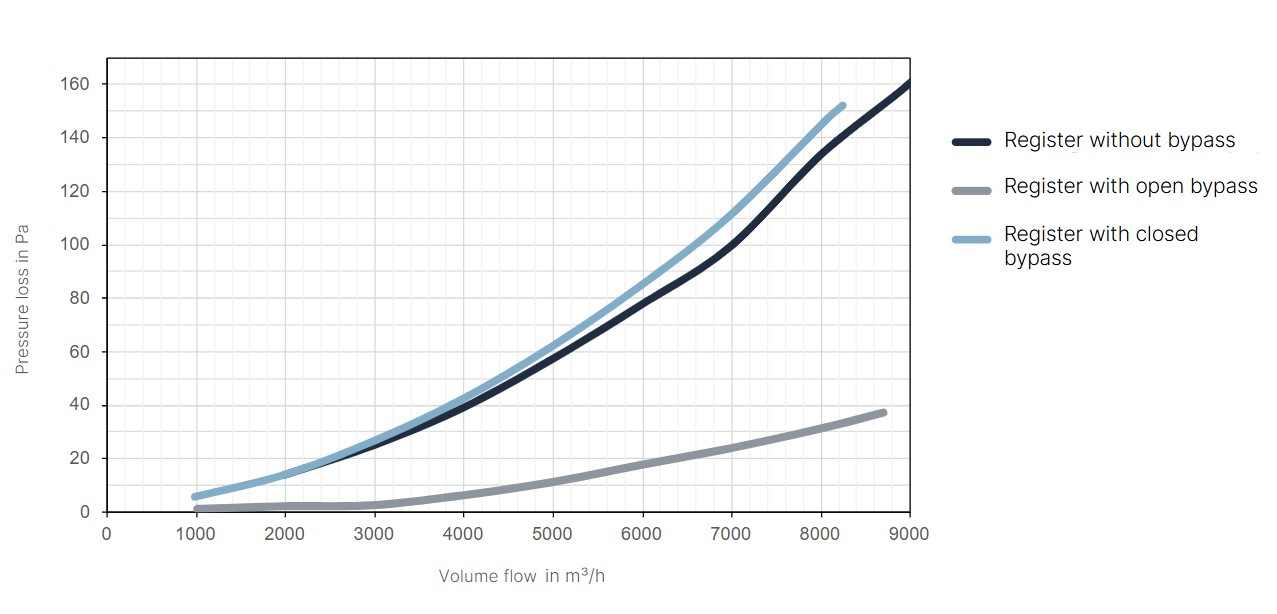

Pressure loss overview

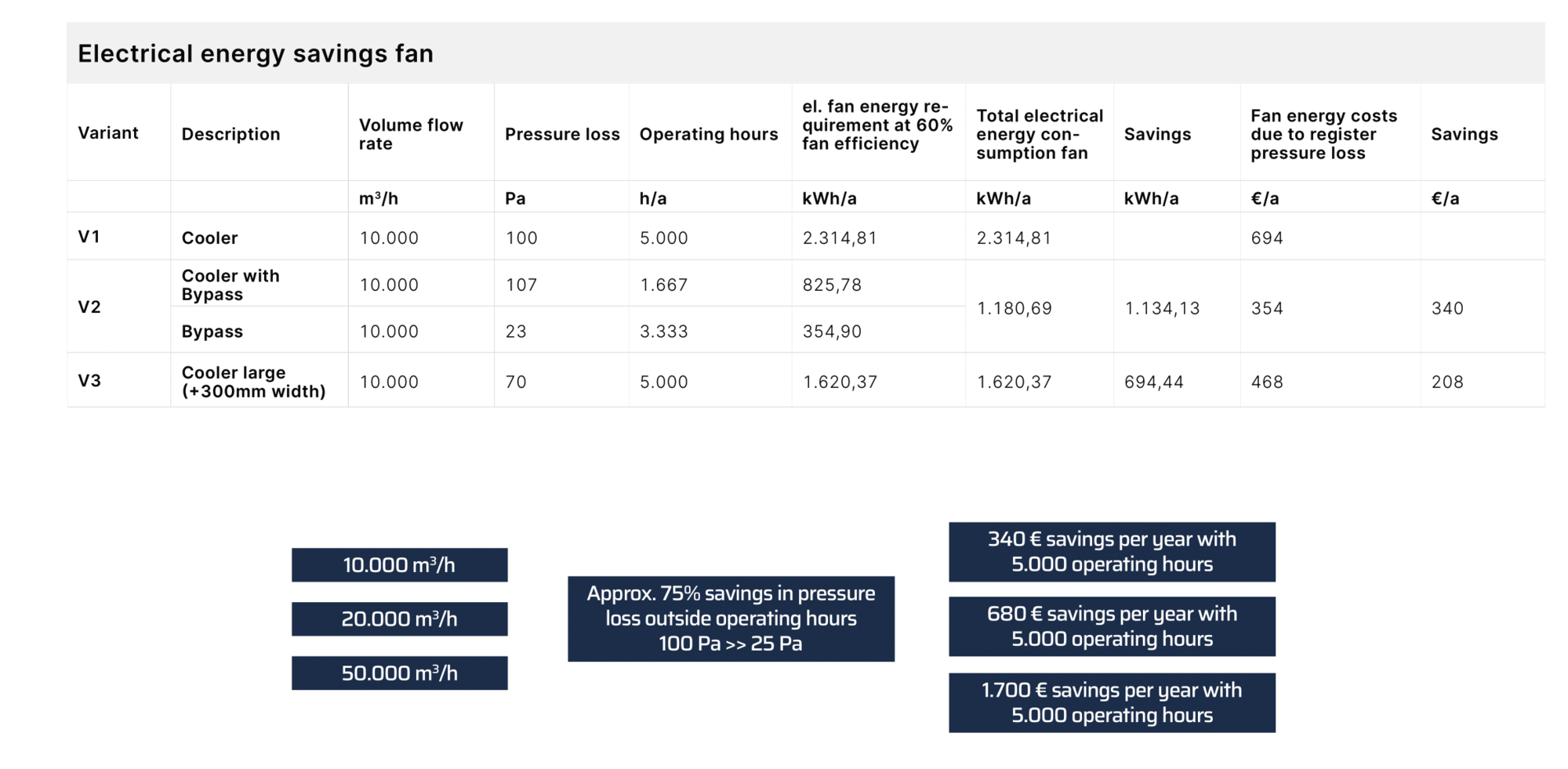

Savings in electrical energy consumption
