Warm air curtains
TL-3 / TL-3 EC

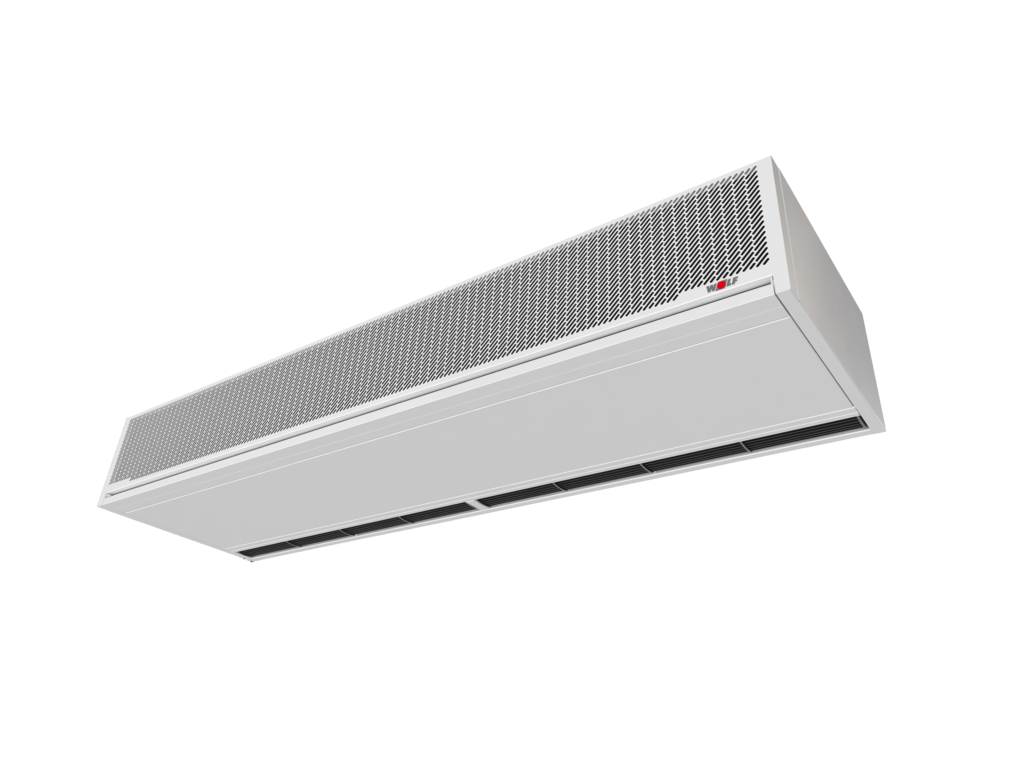

The TL-3 door air curtain creates an effective air barrier in entrance areas and reliably prevents cold air, draughts, dust and insects from entering. It is ideal for shops, industrial halls, offices and public buildings – anywhere where doors are regularly open or remain open for long periods of time.
Advantages of door air curtains TL-3 / TL-3 EC
Efficient air shielding

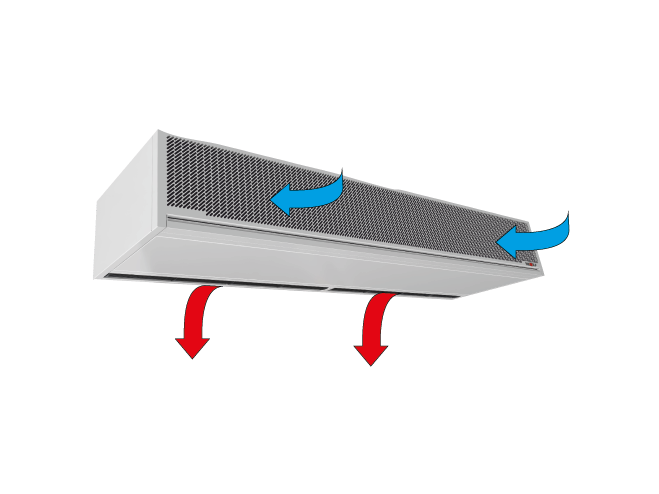

Powerful, double-sided suction radial fans generate a stable, even air flow across the entire width of the door.Choice of AC or EC fans
AC fans: Fast response – ideal for doors and gates that are opened frequently or only briefly.
EC fans (state of the art): Energy-efficient, infinitely variable (0–10 V) and particularly suitable for doors that are open for long periods – with significantly lower power consumption.
Individually adjustable air flow
Special exhaust system with adjustable air guide vanes secured against twisting. Optimal adaptation to any entrance situation.Quiet operation
Intake via a slotted intake grille with at least 56% free cross-section ensures low intake speed and low noise levels.Quick and easy maintenance
Easily accessible functional flap on the underside of the unit allows for particularly convenient, tool-free filter replacement.Integrated filter technology
G2 filter cassette with aluminium frame protects the internal components and ensures a permanently high level of efficiency.Flexible heating options
Heat exchanger (CU/Al) for pumped hot water with anti-rotation connections.
Optional electric heating coil with spiral fins and thermal overheating protection.
Robust, durable housing
CNC-machined, self-supporting sheet steel housing in a modern design.
Powder-coated in RAL 9016 (traffic white) – individual RAL colours available on request.
High operational reliability
ERP-compliant motors with integrated thermal contact for reliable full motor protection.
Vibration-free bearings ensure smooth running and a long service life.
